SY200D High Pressure Water Jet Pump
Classification:
High pressure pump
SY200D High Pressure Water Jet Pump
| Input speed min-1RPM | 1480 | |||||
| Pump speed 366 min-1RPM | Power (Chai) | 170KW 231Hp | 176KW 240Hp | 199KW 270Hp | 238KW 324Hp | |
| Pump type | Rated Flow L/min m?/h | Pressure MPa | ||||
| SY200D-58 | 350 | 21 | 22 | - | - | - |
| SY200D-62 | 400 | 24 | - | 20 | - | - |
| SY200D-70 | 500 | 30 | - | - | 18 | - |
| SY200D-76 | 600 | 36 | - | - | - | 18 |
Weight: 670 kg Import: G3 "Export: ZG 1" | ||||||

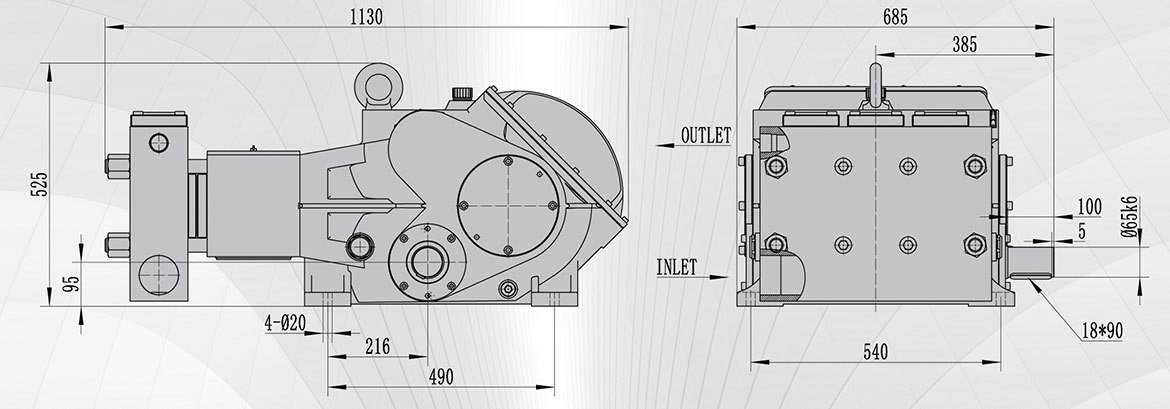

Overall dimension
